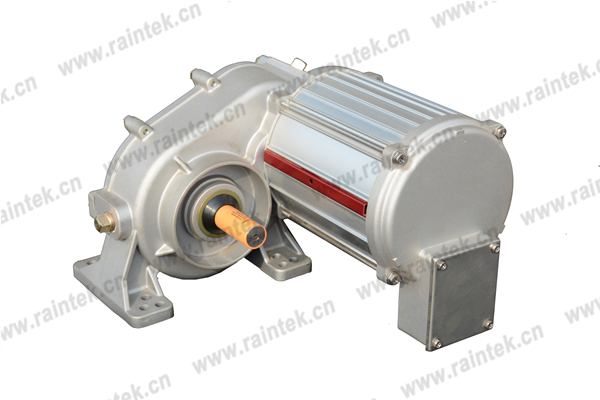

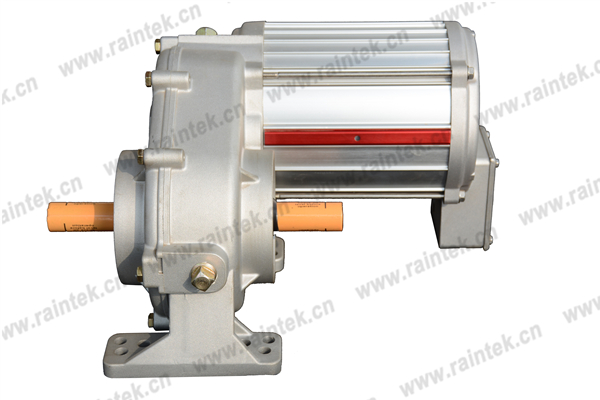

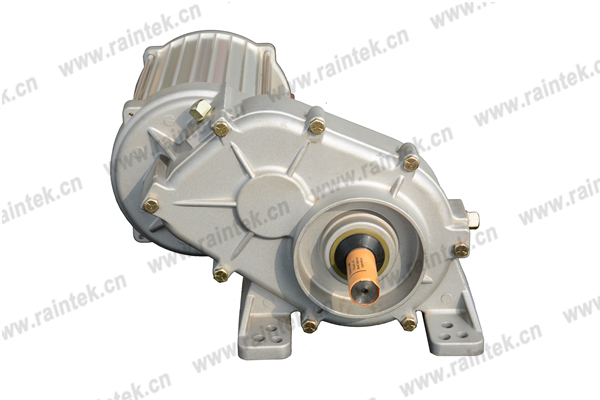

PSG35-RTUMC40 Gear Motor / Center Drive

PSG35 Series Center Drive

0.75HP, 40:1

The most efficient gear motor for the center pivot and linear irrigation system.

RainTek dual voltage electric motor, available in 3-phase is designed to work with global power sources. When coupled with our wide range of speed reducing gear ratios, the grower is able to precisely control water application while saving energy.

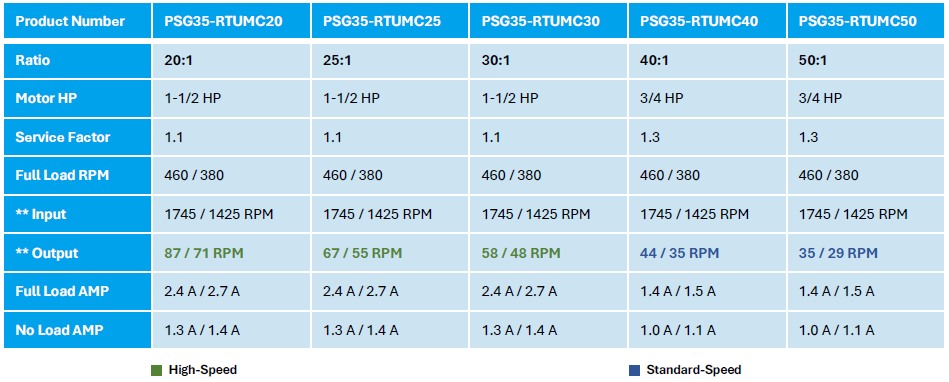

Specifications

Why Choose RainTek Center Drives?

Enhanced Sealing:

RainTek center drives feature cartridge style output seals which eliminate shaft grooving and reduce oil leaks. The special design can reduce the maintenance costs.

Robust Design:

All the center drives feature superior protection from water ingress as well as larger bearings and precision machined heat-treated forged steel gears.

Excellent Quality:

All the RainTek center drives are well designed, carefully crafted, and using top grade materials, the advance manufacturing methods ensure the quality and field life.

Universal Interface:

Different pivot manufacturers are using different mounting patterns, RainTek center drives are using multiple mounting bolt patterns enabling them to interface with nearly every pivot brand.

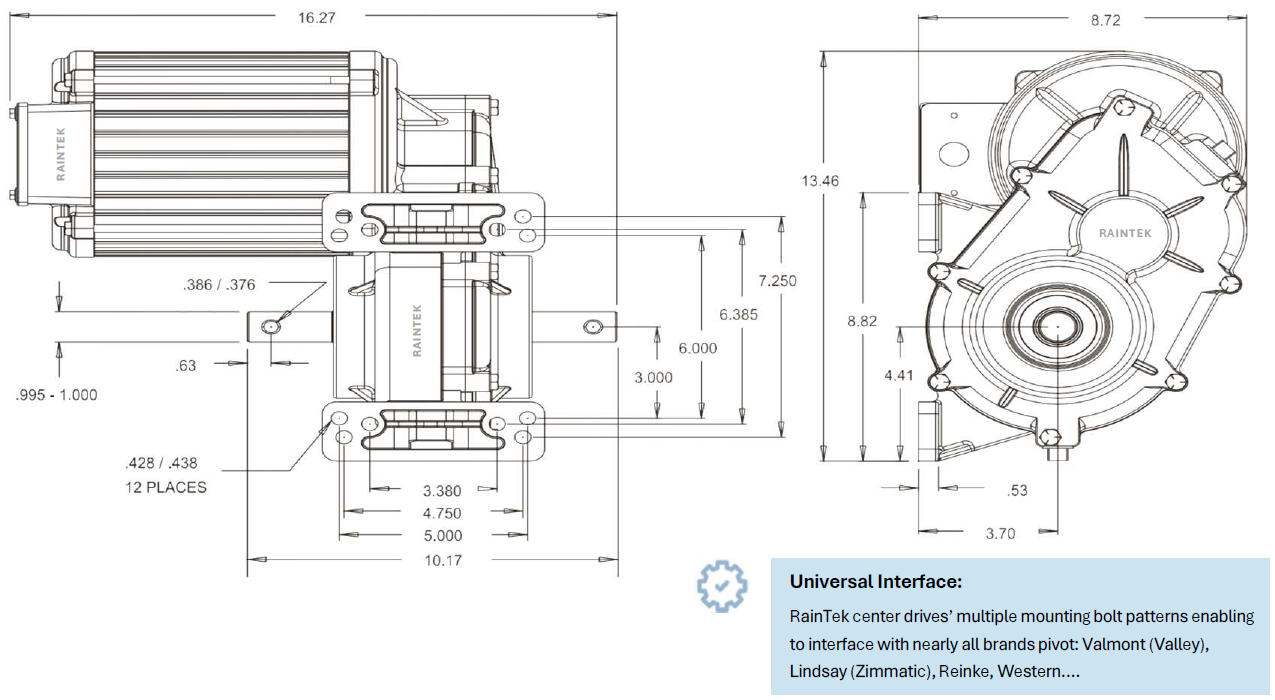

Dimensional Drawing

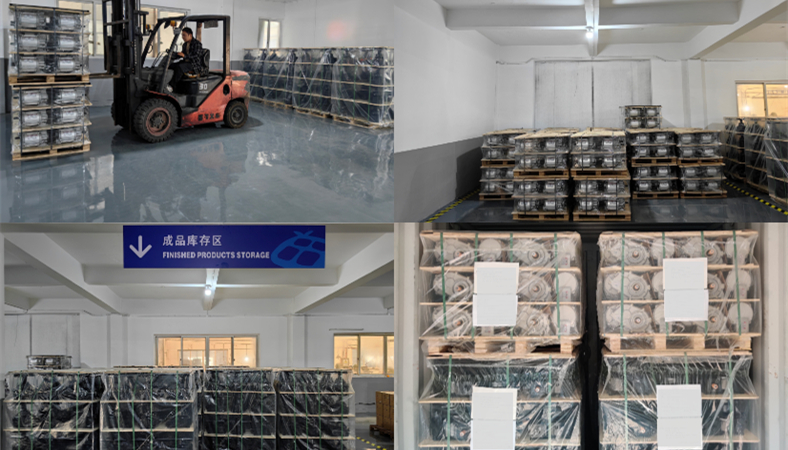

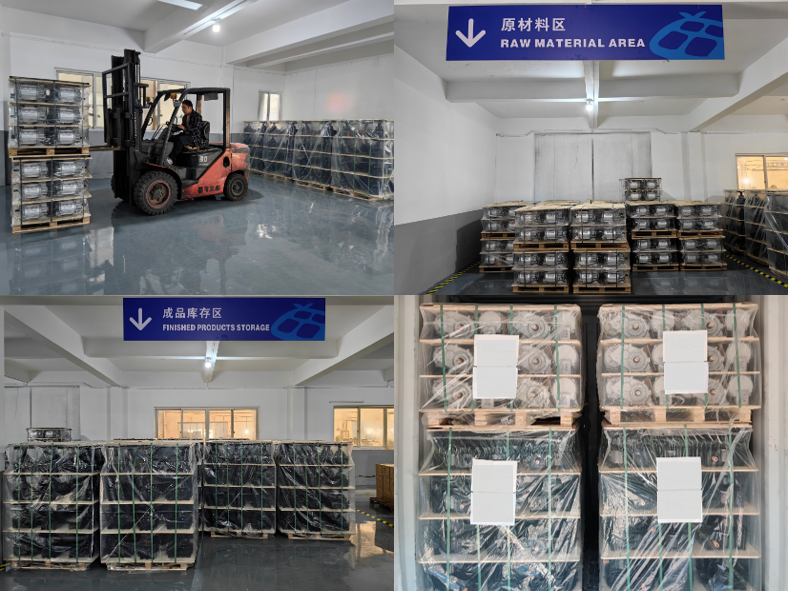

Package

RainTek gear motors are available with a 3-phase, 460/380 Volt AC, 60/50Hz electric motor. We offer multiple ratios, speed-reducing gearboxes that use 95% efficient helical spur gears for power transmission to the final drive gearbox.

Today RainTek offers the widest range of center drives in the pivot irrigation industry designed for everything from standard speed irrigation to super high speed chemigation and data collection. For over 13 years, our center drives have been the trusted choice of customers worldwide.
