Description

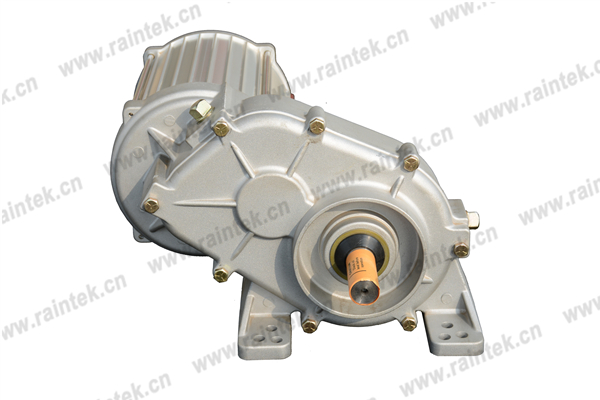

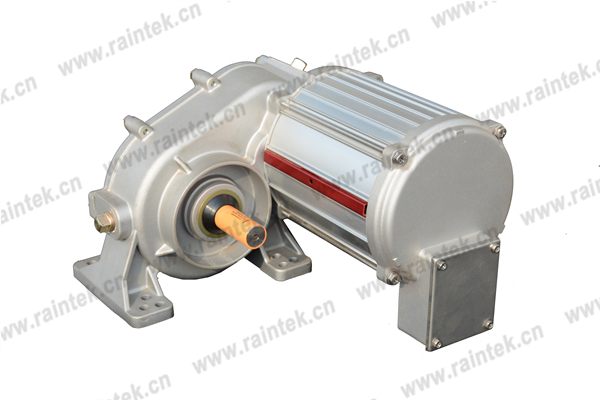

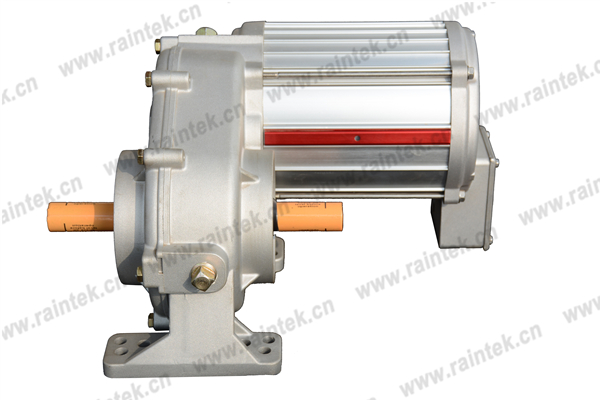

RAINTEK NO.: RTDM1001

DESCRIPTION

It's a dual voltage electric motor, available in 3 phase is designed to work with global power sources. When coupled with our wide range of speed reducing gear ratios, the grower is able to precisely control water application while saving energy.

FEATURES

1. Spray guard for added moisture protection when sprinkler nozzles are located below the gearmotor.

2. Aluminum finned stator housing for cooler running temperature.

3. Helical spur gear design available in multiple ratios.

4. All aluminum gear case for cooler running, longer life, and increased corrossion resistance.

5. All gears are heat treated.

6. High strength steel shaft for long life and dependability.

7. Top fill plug positioned to set correct oil level.

8. All critical electrical connections use P.D, caps to encapsulate and to protect from moisture.

9. Class H wire and class F insulation.

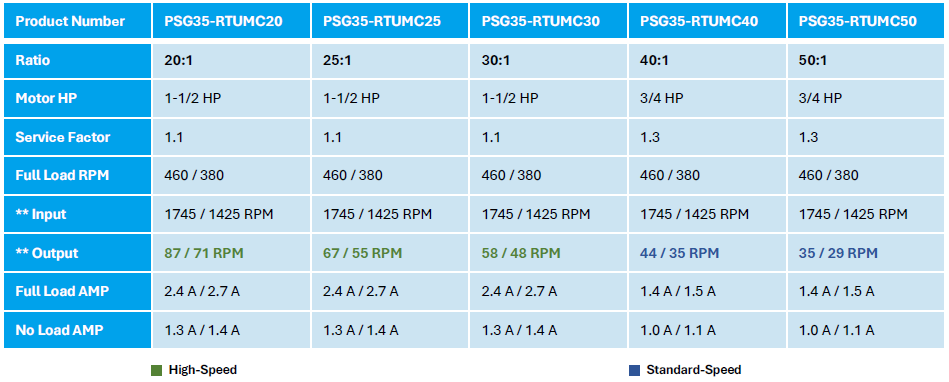

SPECIFICATION

Part No.

Voltage

Gear Ratio

Motor HP

Output

Full Load Amp

RTDM1001-1

460V, 60Hz / 380V, 50Hz

50:1

3/4 HP

35 / 29 RPM

1.4 / 1.5A

RTDM1001-2

460V, 60Hz / 380V, 50Hz

40:1

3/4 HP

44 / 35 RPM

1.4 / 1.5A

RTDM1001-3

460V, 60Hz / 380V, 50Hz

25:1

1.5 HP

68 / 56 RPM

2.2 / 2.3A

RTDM1001-4

460V, 60Hz / 380V, 50Hz

20:1

1.5 HP

87 / 71 RPM

2.2 / 2.3A

This gear motor can be used for VALLEY, ZIMMATIC, REINKE and PIERCE center pivot/linear irrigation system.

YOUR ONE-STOP IRRIGATION PRODUCTS SUPPLIER, WE HELP THE FARM GROW!

Hot keywords: gear motor; center drive.
