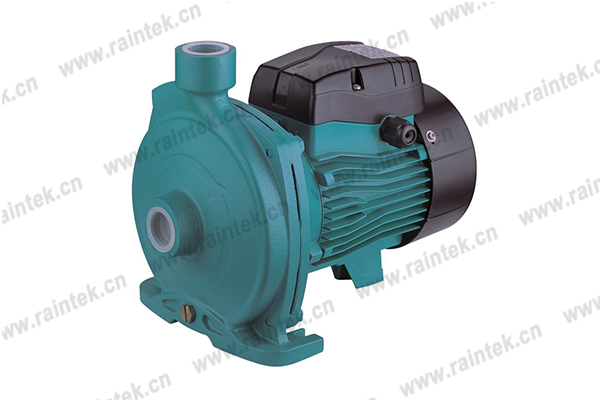

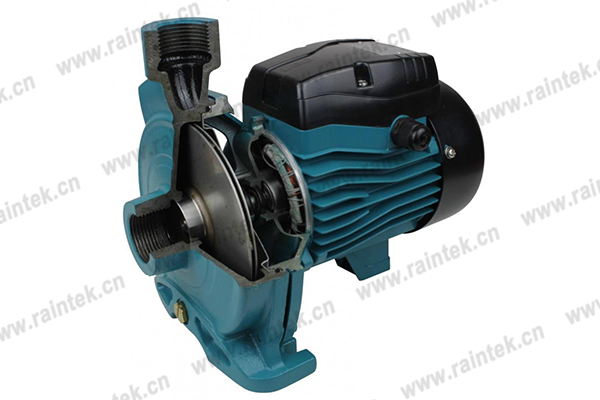

End Gun Booster Pump

End Spray Gun

End Gun Booster Pump
Ask for quote
End Gun Booster Pump
End Gun Booster Pump
End Gun Booster Pump
End Gun Booster Pump
End Gun Booster Pump
End Gun Booster Pump
Concact Us >
TEL: +86 574 8885 6679
EMAIL: sales@raintekglobal.com
Description
RAINTEK NO.: RTSG051002

MODEL: AC220CH2, AC300CH2, AC400CH2

DESCRIPTION

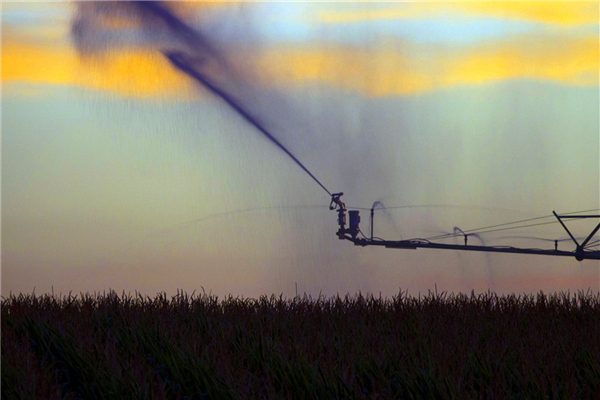

The center pivot irrigation system can cover the corners with this quality booster pump and spray gun equipped. It is built to meet the heavy-duty demands of its application. It's available as a 3hp, 4hp and 5.5hp model.

BASIC SPECIFICATION

Model

Voltage

Power

Q (m³/h)

Rated H (m)

Diameter

AC220CH2

380-415V, 50Hz

2.2KW

3HP

24

21.5

2"×2"

AC300CH2

380-415V, 50Hz

3KW

4HP

24

28.5

2"×2"

AC400CH2

380-415V, 50Hz

4KW

5.5HP

24

39.5

2"×2"


PACKING INFORMATION

Model

L (mm)

W (mm)

H (mm)

Gross Weight (KG)

AC220CH2

507

304

372

39.1

AC300CH2

507

304

372

41.6

AC400CH2

562

328

383

57.5
