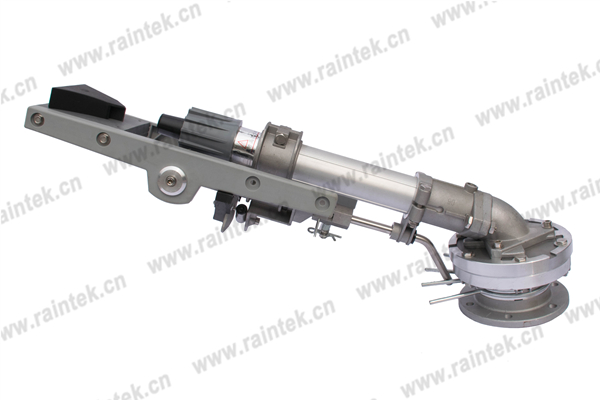

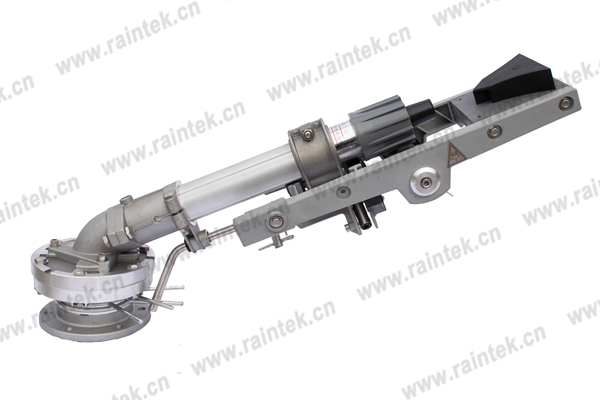

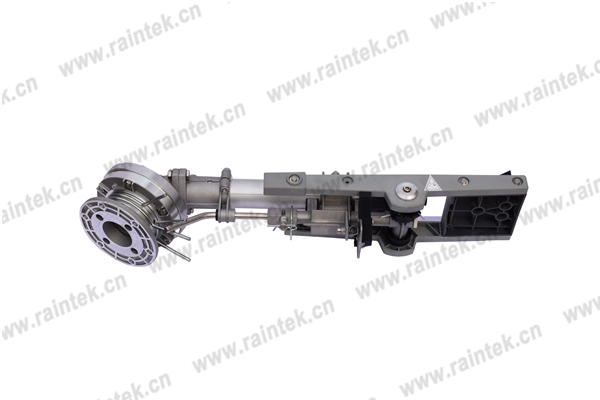

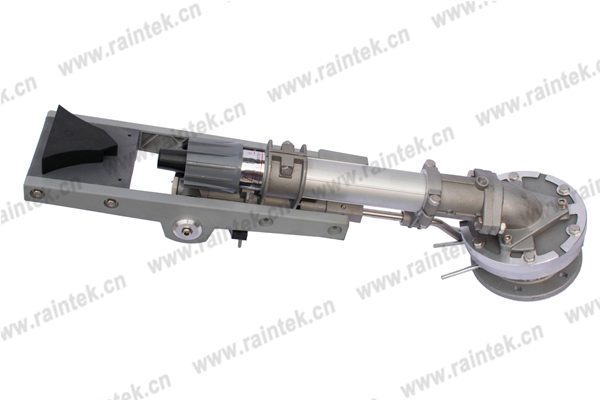

101 Type End Spray Gun
RAINTEK NO.: RTSG021002
INTRODUCTION
Efficient irrigation is an important factor to support crop growth. A uniform water distribution helps the soil to evenly absorb the water, consequently avoiding water run-offs. This greatly promotes even plant growth throughout the field and at the same time can increase the yield and its quality. A fine water application also allows to grow sensitive crops.
This spray gun is a perfect choice for center pivot corner irrigation method. It’s reliable, always operate at the optimum efficiency, easy to use and minimize the waste of precious natural resources.
BASIC SPECIFICATION
|
Nozzle Diameter mm |
Pressure kg / cm² |
Water Capacity m³ / h |
Range m |
|
16 |
2 |
14.2 |
27 |
|
3 |
17.5 |
32.2 |
|
|
4 |
19.9 |
36 |
|
|
5 |
22.8 |
39 |
|
|
6 |
24.7 |
42.6 |
|
|
7 |
26.6 |
44 |
|
|
18 |
2 |
17.9 |
29 |
|
3 |
21.9 |
34 |
|
|
4 |
25.5 |
38.4 |
|
|
5 |
28.2 |
42 |
|
|
6 |
30.9 |
45 |
|
|
7 |
33.2 |
47.2 |
|
|
20 |
2 |
22.2 |
31 |
|
3 |
26.7 |
36 |
|
|
4 |
31.5 |
41.2 |
|
|
5 |
35.1 |
44 |
|
|
6 |
38.1 |
47.1 |
|
|
7 |
42.2 |
49 |
|
|
22 |
2 |
26.8 |
33 |
|
3 |
33.5 |
37.5 |
|
|
4 |
37.9 |
43 |
|
|
5 |
42.5 |
46 |
|
|
6 |
46.5 |
49.5 |
|
|
7 |
49.8 |
52 |
|
|
24 |
2 |
31.8 |
34 |
|
3 |
39.5 |
40 |
|
|
4 |
45.3 |
44.3 |
|
|
5 |
50.3 |
48 |
|
|
6 |
54.6 |
52 |
|
|
7 |
58.8 |
55.2 |
